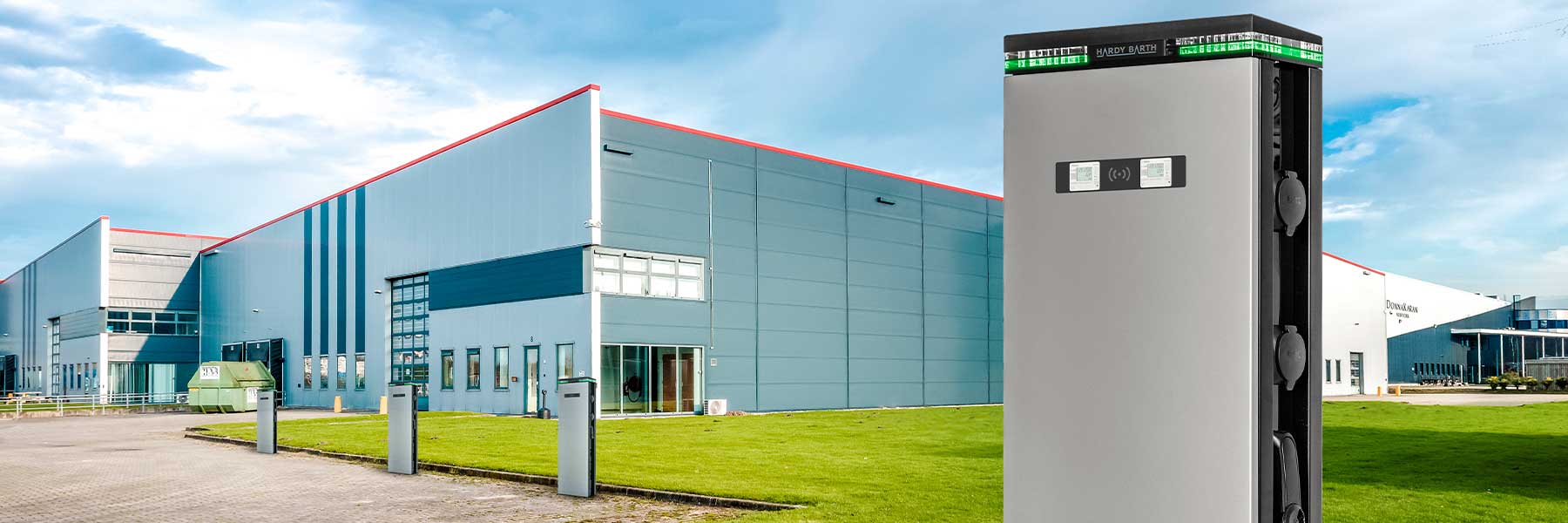

Intelligent load management for electric mobility vehicle fleets. Effective charging solutions for companies from industry, trade and commerce as well as for public buildings and facilities.
weight ca. 45-55 kg (depending on variant) | dimension 14 x 440 x 203 mm
| Type | 2T22 | 2T44 | 4T44 |
|---|---|---|---|
| Charging power | 2 x 11 kW 1 x 22 kW | 2 x 22 kW | 4 x 11 kW 2 x 22 kW |
| grid connection | 3 phase, 400 V 32 A, 50 Hz | 3 phase, 400 V 63 A, 50 Hz | 3 phase, 400 V 63 A, 50 Hz |
| Rated voltage | 400 V | 400 V | 400 V |
| Rated current | 32 A | 63 A | 63 A |
Available with concrete foundation and base in various heights.
weight ca. 10-15 kg (depending on variant) | dimension 477 mm x 400 mm x 164 mm
| Type | 1T11 | 1T22 | 2T22 | 2T44 |
|---|---|---|---|---|
| Charging power | 1 x 11 kW | 1 x 22 kW | 2 x 11 kW 1 x 22kW | 2 x 22kW |
| grid connection | 3 phase, 400 V 16 A, 50 Hz | 3 phase, 400 V 32 A, 50 Hz | 3 phase, 400 V 32 A, 50 Hz | 3 phase, 400 V 2 x 32 A, 50 Hz |
| Rated voltage | 400 V | 400 V | 400 V | 400 V |
| Rated current | 16 A | 32 A | 32 A | 63 A |
Integrated DC residual current module, "Smart Grid", charge recording, LAN, energy meter possible in combination with eCB1 Smartmeter, protection class IP54, incl. automatic phase changeover
Available with charging socket and fixed charging cable.
weight ca. 5 kg | dimension 283 mm x 196 mm x 77 mm
| Type | T11 |
|---|---|
| Charging power | 11 kW |
| grid connection | 3 phase, 400 V 16 A, 50 Hz |
| Rated voltage | 400 V |
| Rated current | 16 A |
Integrated DC residual current module, "Smart Grid", charge recording, RS-485, energy meter possible in combination with MID meter, protection class IP54, incl. automatic phase changeover
