Our charging solutions for the private sector. Fast, fully automatic charging of your electric vehicle. Whether Tesla Model S, smart fortwo electric drive, VW e-Golf, BMW i3 or Renault ZOE. Our solutions are characterised by simple integration into your existing system and intelligent load management.

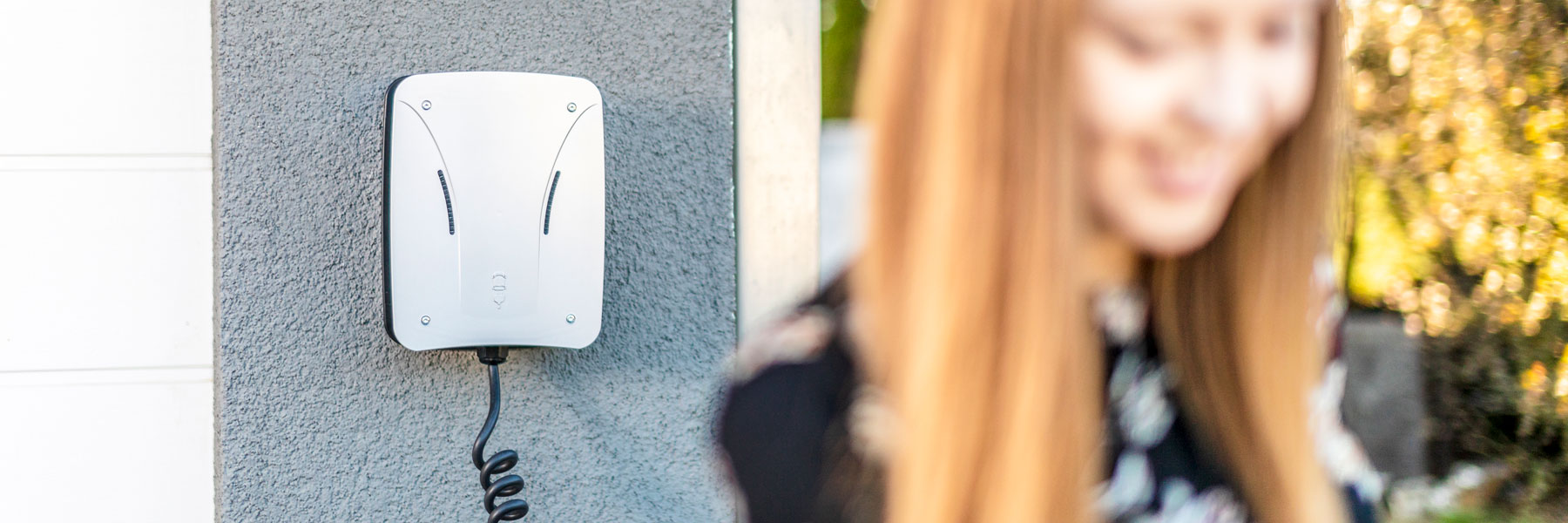

weight ca. 5 kg | dimension 283 mm x 196 mm x 77 mm
| Type | T11 |
|---|---|
| Charging power | 11 kW |
| grid connection | 3 phase, 400 V 16 A, 50 Hz |
| Rated voltage | 400 V |
| Rated current | 16 A |
Integrated DC residual current module, "Smart Grid", charge recording, RS-485, energy meter possible in combination with MID meter, protection class IP54, incl. automatic phase changeover
weight ca. 10-15 kg (depending on variant) | dimension 477 mm x 400 mm x 164 mm
| Type | 1T11 | 1T22 | 2T22 | 2T44 |
|---|---|---|---|---|
| Charging power | 1 x 11 kW | 1 x 22 kW | 2 x 11 kW 1 x 22kW | 2 x 22kW |
| grid connection | 3 phase, 400 V 16 A, 50 Hz | 3 phase, 400 V 32 A, 50 Hz | 3 phase, 400 V 32 A, 50 Hz | 3 phase, 400 V 2 x 32 A, 50 Hz |
| Rated voltage | 400 V | 400 V | 400 V | 400 V |
| Rated current | 16 A | 32 A | 32 A | 63 A |
Integrated DC residual current module, "Smart Grid", charge recording, LAN, energy meter possible in combination with eCB1 Smartmeter, protection class IP54, incl. automatic phase changeover

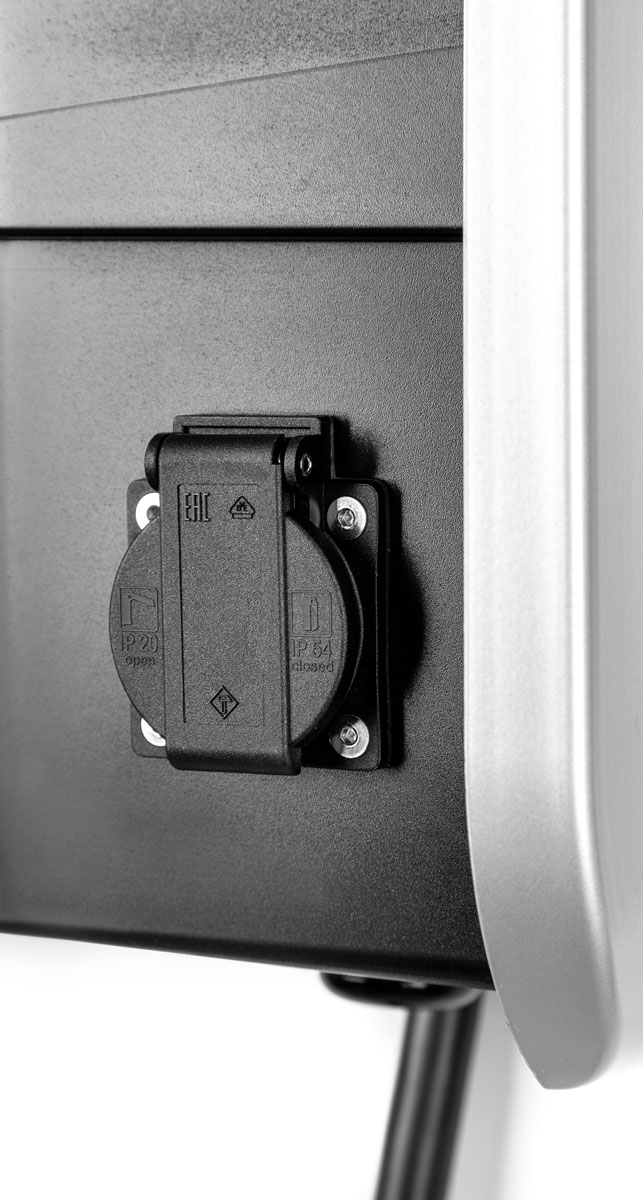

Available with charging socket and fixed charging cable.
weight ca. 45-55 kg (depending on variant) | dimension 14 x 440 x 203 mm
| Type | 2T22 | 2T44 | 4T44 |
|---|---|---|---|
| Charging power | 2 x 11 kW 1 x 22 kW | 2 x 22 kW | 4 x 11 kW 2 x 22 kW |
| grid connection | 3 phase, 400 V 32 A, 50 Hz | 3 phase, 400 V 63 A, 50 Hz | 3 phase, 400 V 63 A, 50 Hz |
| Rated voltage | 400 V | 400 V | 400 V |
| Rated current | 32 A | 63 A | 63 A |
Available with concrete foundation and base in various heights.
